Moody 336
LOA 33'6"
LWL 28'9"
Beam 11'7"
Draft 3'11"
Built 1989 Fibreglass
launched 1990 Mark 1
Designed by Bill Dixon
Aft cockpit Sloop, wheel steering, fin keel.

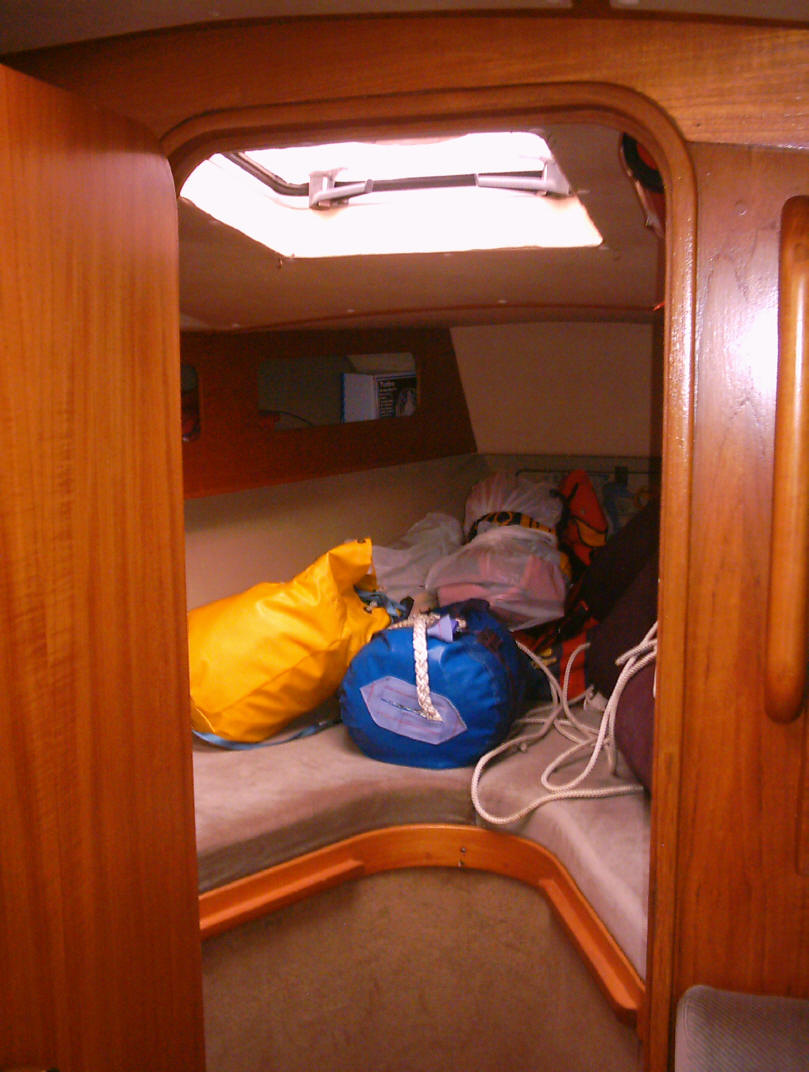

Forecabin; a comfortable,
roomy cabin with two single berths which are convertible to a double.

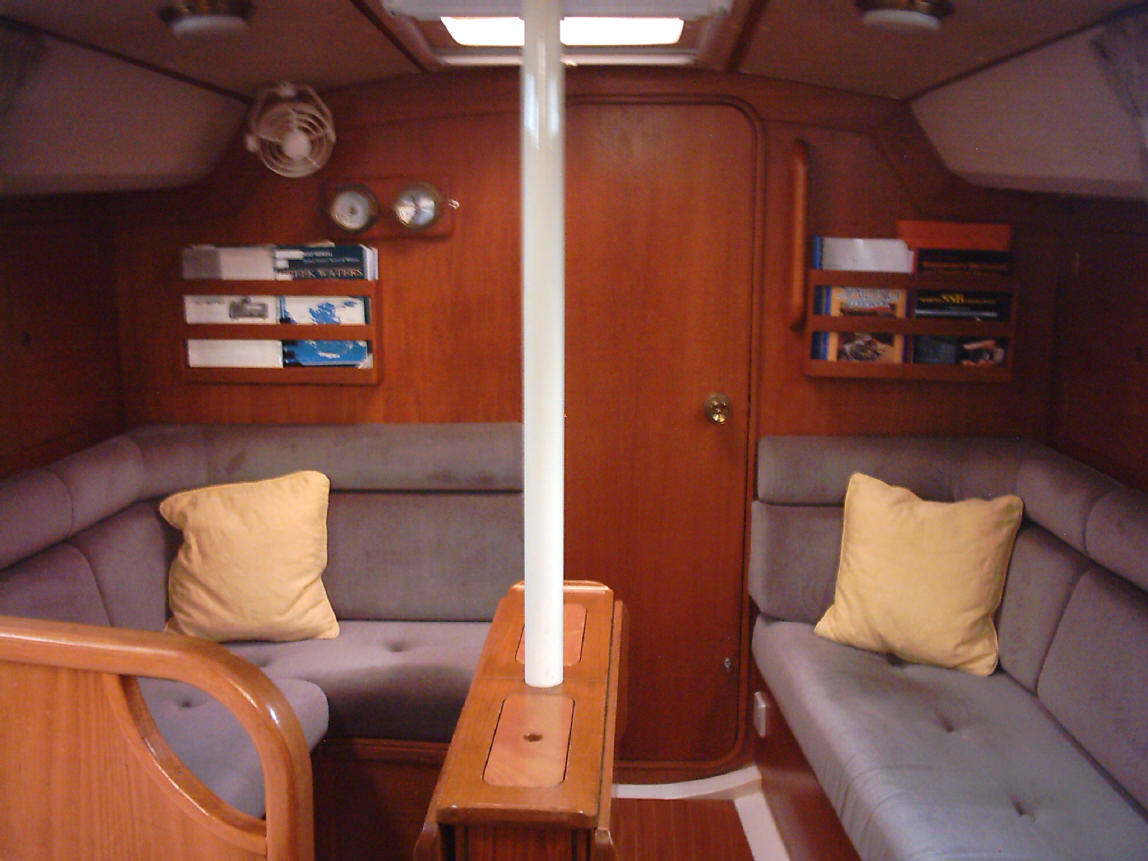

The centrally mounted table folds

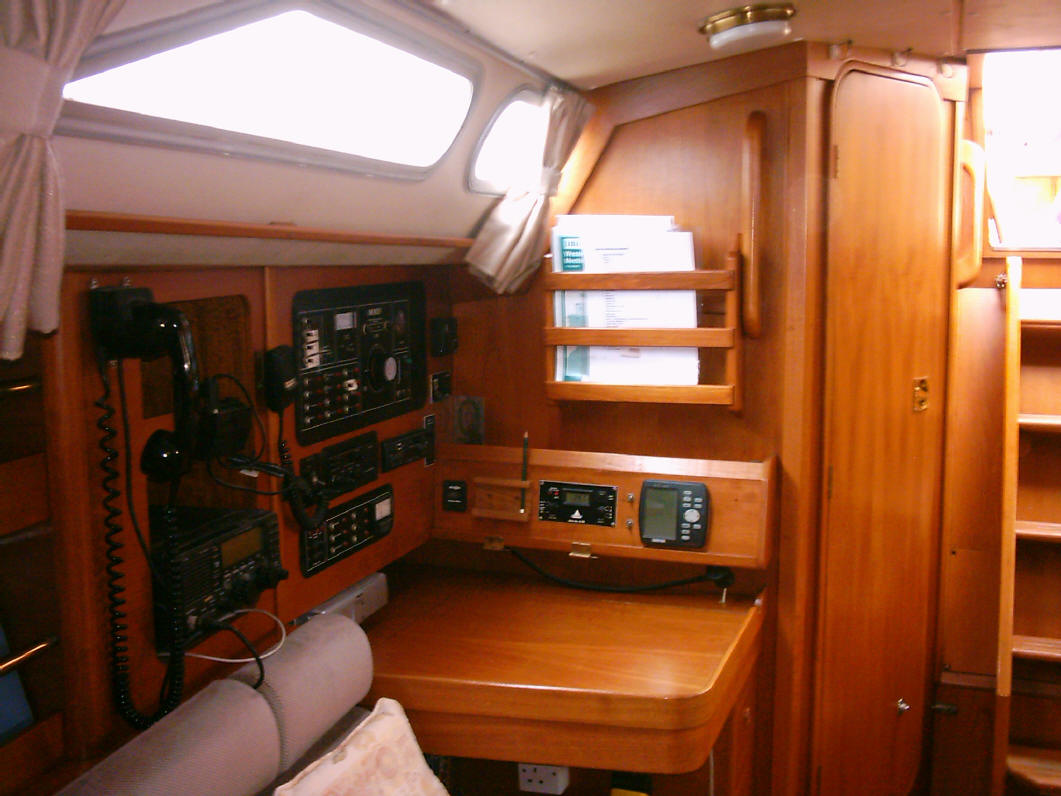

out to the complete width of the saloon. The navigation area is
aft of the saloon on the portside; chart table.

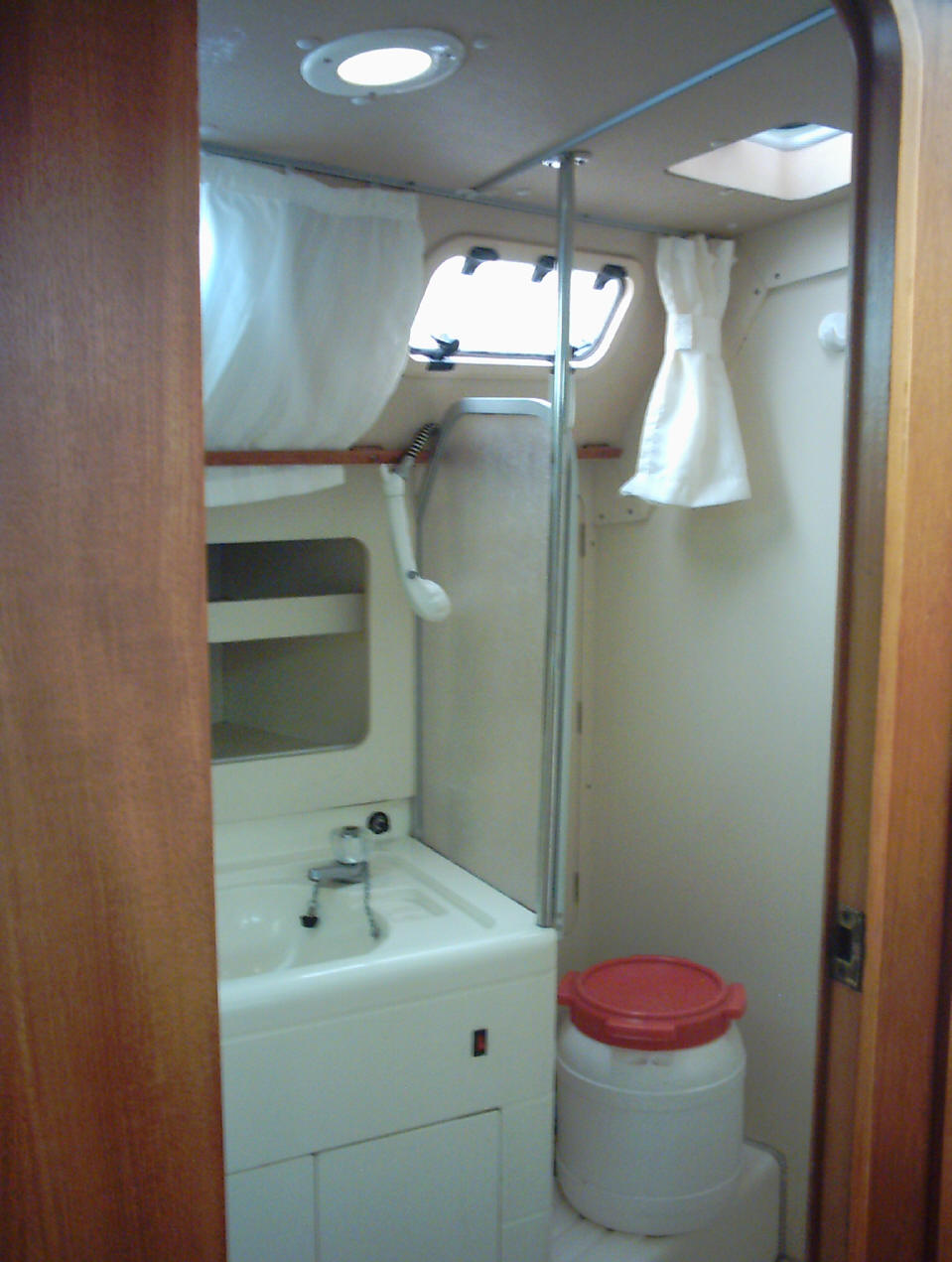

The toilet compartment with marine toilet and shower is aft of
the navigation area on the port side immediately adjacent to the
companionway steps.

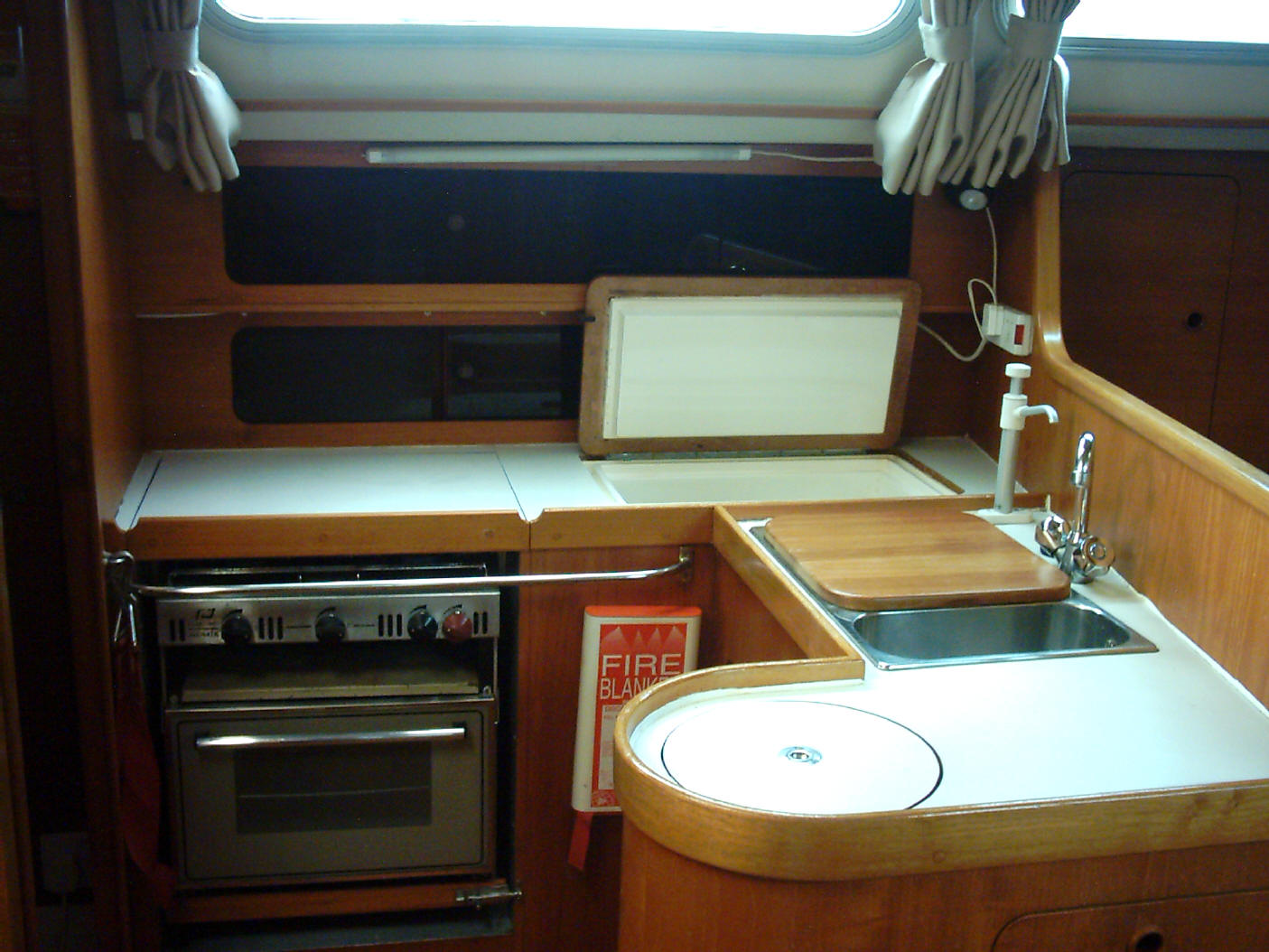

The galley, which is immediately opposite is L shaped; hot and cold
pressurised water system, stainless steel sink with chopping board

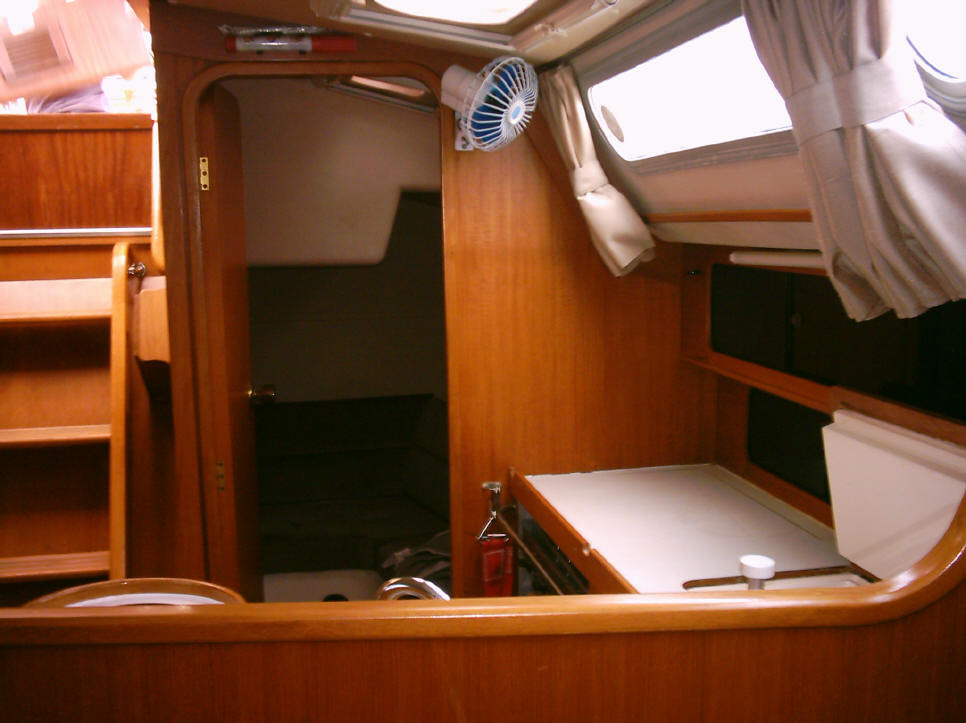

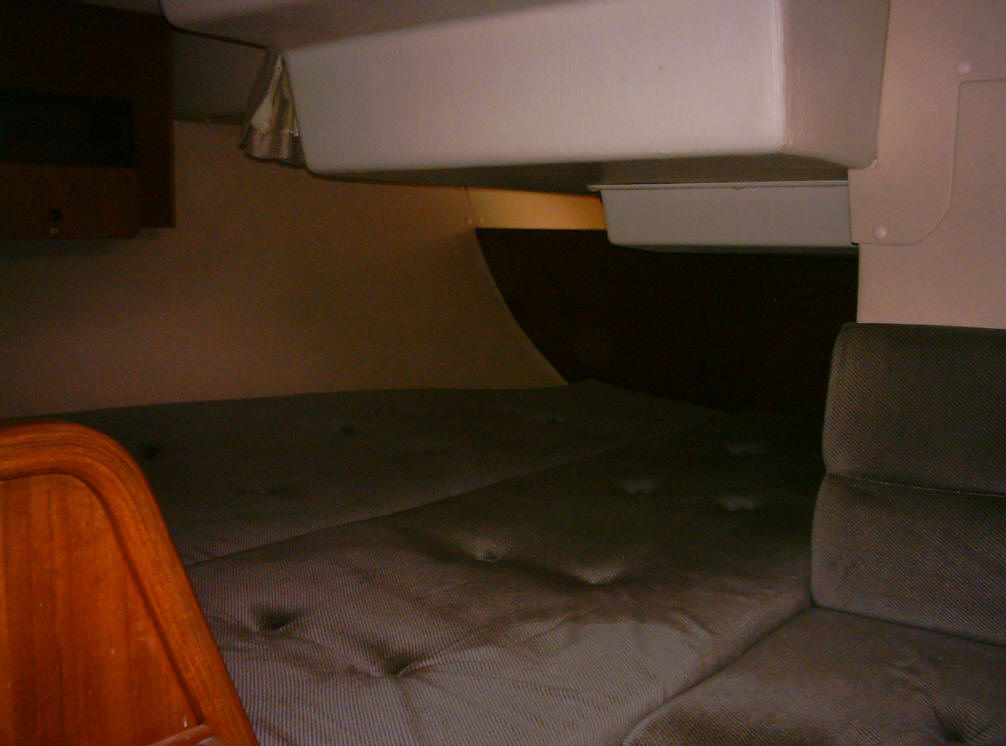

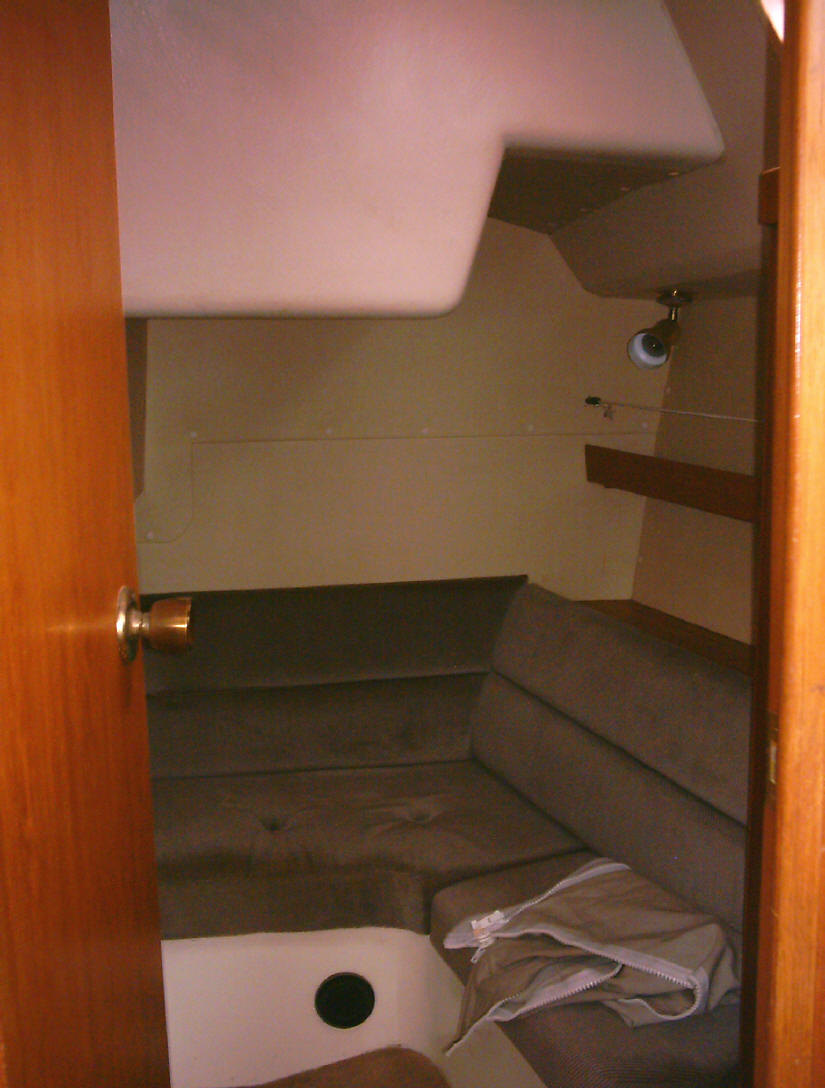

inset, full cooker, and top opening icebox. The huge aft cabin is
reached through a doorway from the galley. In this
cabin is a large double berth, a settee, and a dressing table.

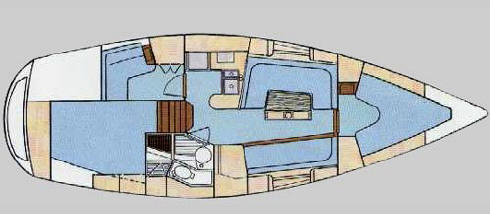

Layout plan
click to enlarge
Fuel 118 litres.
Water 202 litres
click to enlarge
This cruising yacht is deceptively spacious.
Separate
enourmous aft cabin and plenty of room for entertaining on board.
Boat Extra’s and Improvements
Harken backstay tensioner
Electric anchor windlass
Winches upgraded to Lewmar 43 CST
Roller reefing winch upgraded to 34 CST
Two cockpit safety line anchorages
Sails by Westaway, Main and Genoa (150%). No 3 and Storm Jib
Deep-sea seal
Four coats of epoxy (VC Tar) from new on underside
Shore power supply, 3x 13 amp sockets
Immersion heater in H W tank
Battery Charger
Additional Battery
Honda Generator
Auto Helm 4000
Additional fuel filter
Teak & Holly cabin sole
Elk hide wheel covering
Cockpit Table and mug rack
Life sling MOB rescue system
Delta Anchor +45m Chain
Bugle Anchor +10m chain and warp
Danforth Anchor
Garmin GPS 126 for helmsman
Garmin 128 for navigator interfaced with radar and computer charting
Raytheon Radar SL 70 Pathfinder
All Standing rigging replaced in 1999
Wind, Depth and Speed instruments (Stow & Raytheon)
Single line reefing System on 2nd & 3rd reef points
Spinlock solid vang
Telescopic Spinnaker pole
Eberspacher heating, two outlets
Solar panels 2 x 75 watts
Wind generator Aerogen 4
Adverc battery charging system
Digital Battery voltage and amp’s display
ICOM M710 SSB Radio with Automatic Tuner
Combined radio, tape and CD player with marinised 100w speakers
Skyscreens on main cabin hatches
Three additional chart/pilot bookcases
Brass retaining bars on shelves
Three 12v fans, one in rear cabin, two in main
Three cigar lighter sockets in main cabin
Life raft, 4man offshore Plastimo with stainless steel deployment cradle
Lazy jacks and sail retainer
Tape Jackstays
Keel cooling on fridge
Binocular box
Biminy, dodgers, spray hood, boom tent and total cockpit enclosure
Additional galley hatch
Fire extinguisher in engine compartment and three Firemasters
Radar reflector
Split pulpit with step
Two florescent cabin lights
Flexible engine coupling
Two Halogen anchor lights with photoelectric cell
Galley bum strap
Hand water pump
Double socket extension in galley
Washboard holder in rear cabin
Wind Scoop
Flares
5 lifejackets & harnesses
Fold Down Boarding Ladder
Folding Prop
Bosuns Chair
Winch Vice
Folding Mast Ladder
click to enlarge
Improvements
Deck organiser and sail handling systems
New shower filter and switch
Improved gimbals on cooker
Additional fridge insulation
Flat handle on heads door (to prevent personal injury)
Computer/GPS interface cable in place for electronic charts
The boat is fully equipped for long term Mediterranean cruising

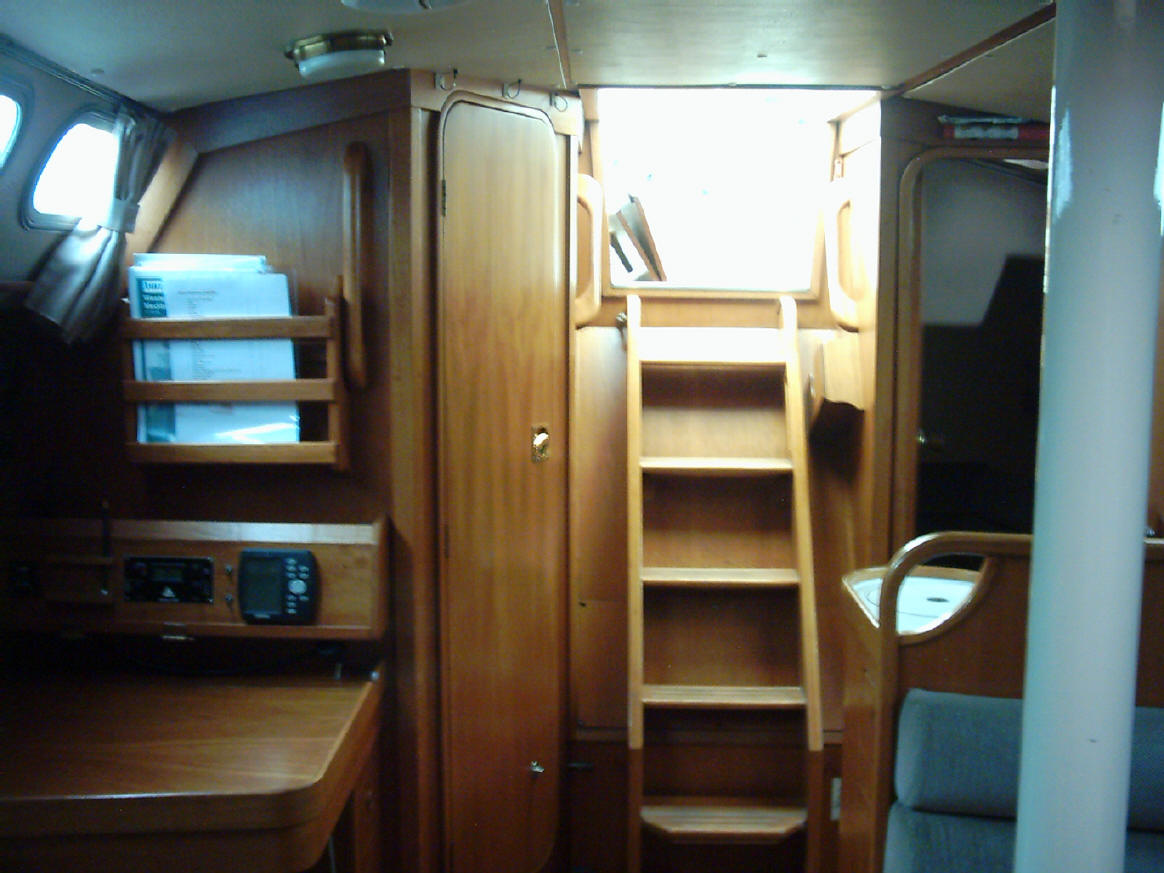

Some interior shots
click on them all to enlarge
She is fitted out for long
distance live aboard cruising and is ready to sail away.
The yacht is now lying in
Larnaca Marina,
VAT paid in the EU.
£54,500 Sterling |
